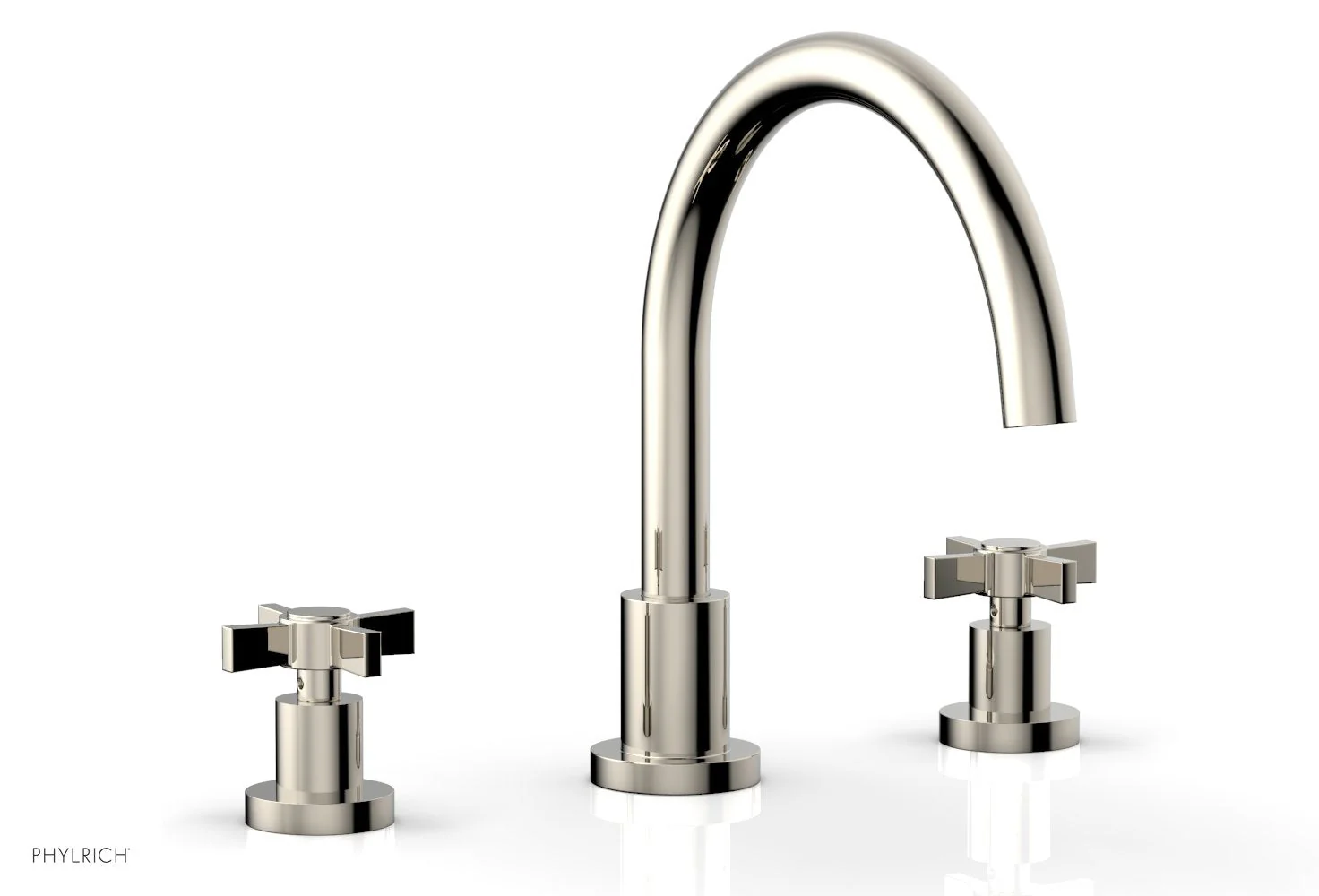

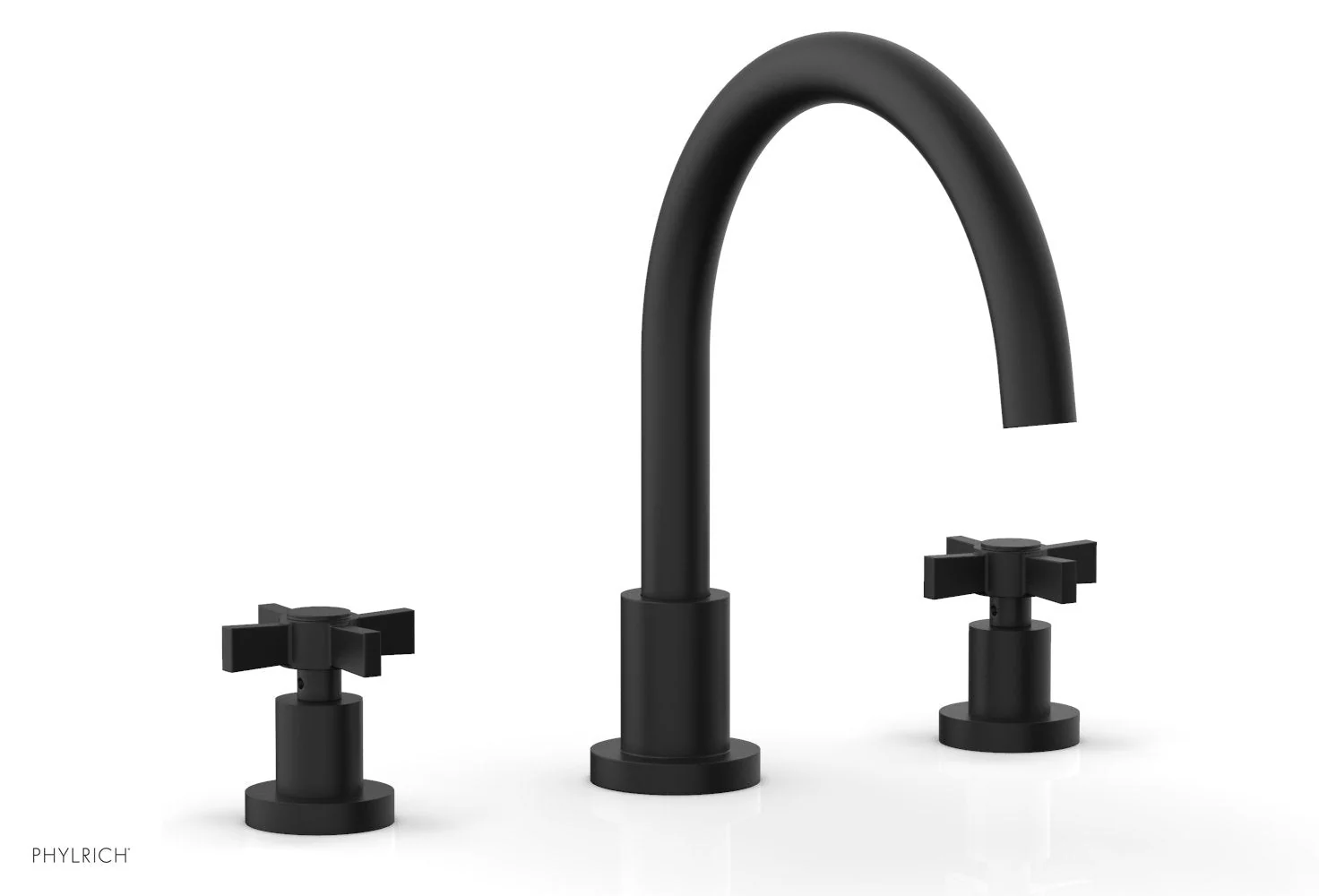

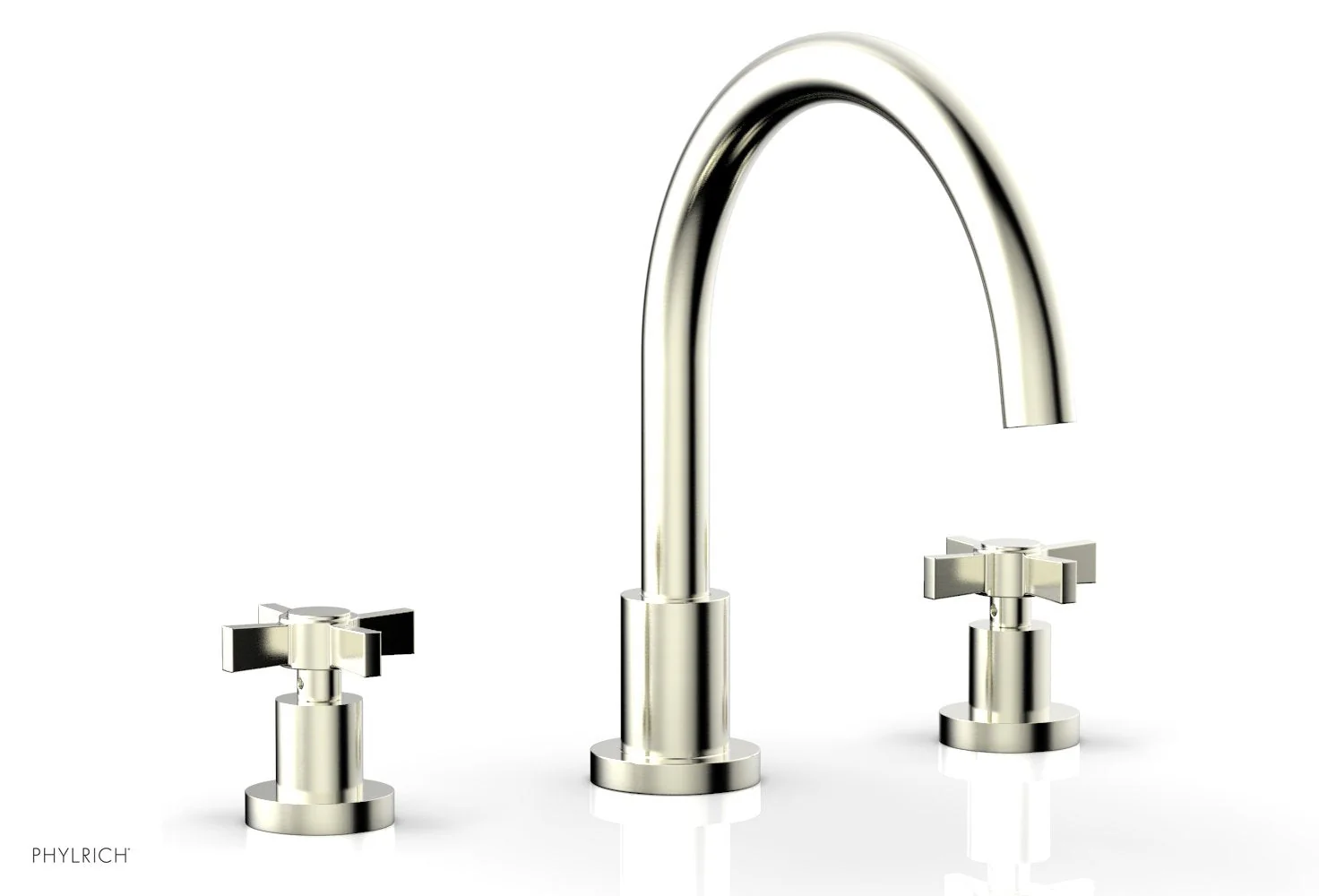

The Phylrich BASIC Deck Tub Set - Blade Cross Handles is the perfect blend of clean, minimalist lines and retro styling, making it an ideal choice for those who appreciate contemporary design with a touch of nostalgia. Crafted with precision and quality in mind, this deck tub set not only enhances your bathing experience but also elevates the aesthetic of your bathroom decor.

Features & Functionality:

• Style: Contemporary
• Collection: Basic
• Temperature Controlled: By Handles

Technical Details:

• ADA Compliance: Yes
• Deck Thickness Maximum: 2"
• Deck Thickness Minimum: 1/8"
• Fitting Hole Diameter: 1 1/8"
• Number of Holes: Three Hole
• Number of Handles: Two
• Handle Spread Maximum: 12"
• Handle Spread Minimum: 8"
• Handle Turn Angle: Quarter Turn
• Spout Reach: 9 1/16"
• Spout Height: 11 1/4"
• Inlet Connection Type: Male 3/4" NPT
• Installation Type: Deck Mounted
• Primary Material: Brass
• Valve Material: Ceramic
• Flow Restriction: Full Flow
• Water Pressure Maximum: 85 PSI
• Water Pressure Minimum: 20 PSI
• Water Pressure Recommended: 60 PSI

Codes & Standards:

• ASME A112.181/ CSA B1251
• ASME 112.18.2/ CSA B125.2
• ANSI NSF
• CEC
• Watersense 61 Sect. 9
• State of MA
• Colors may vary, for authentic colors see finish swatch image or order a sample
