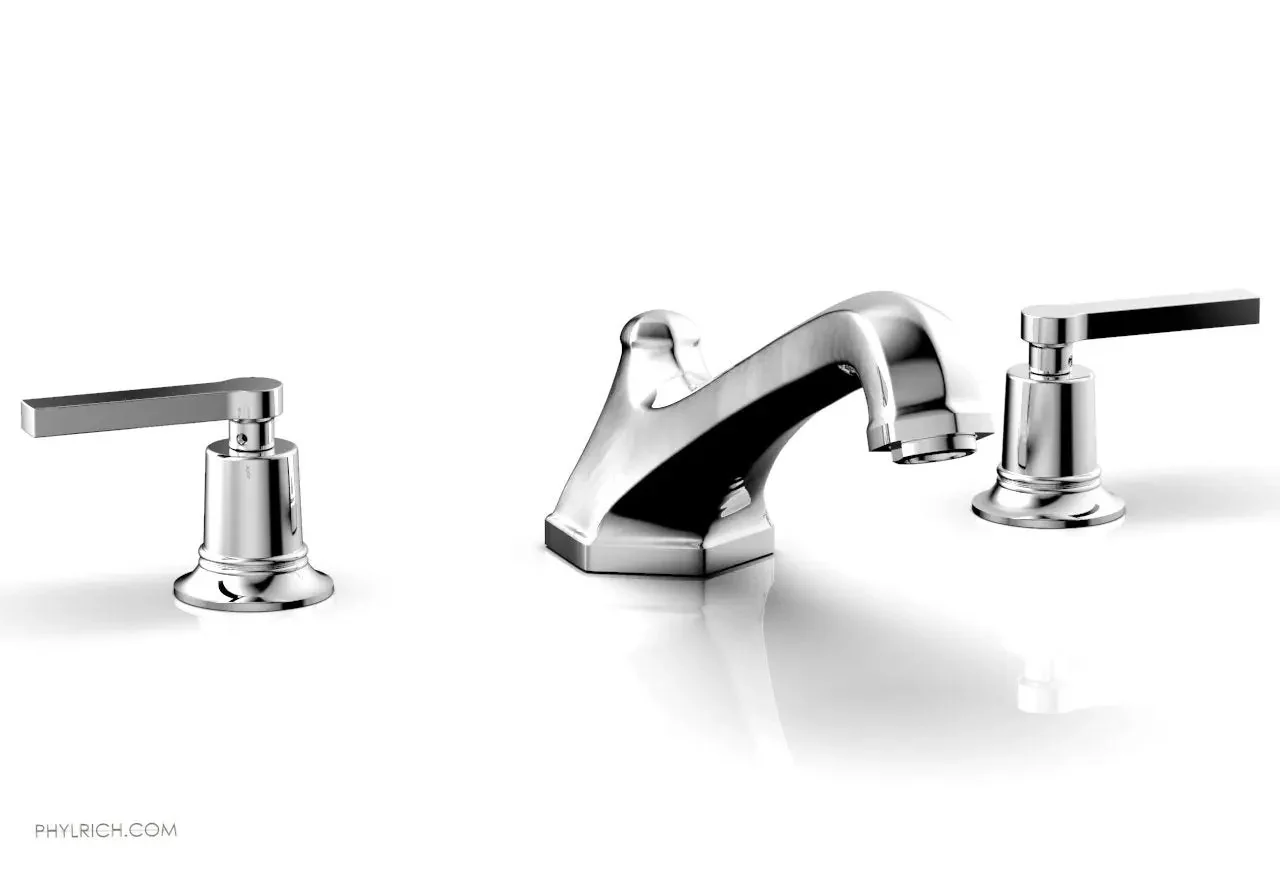

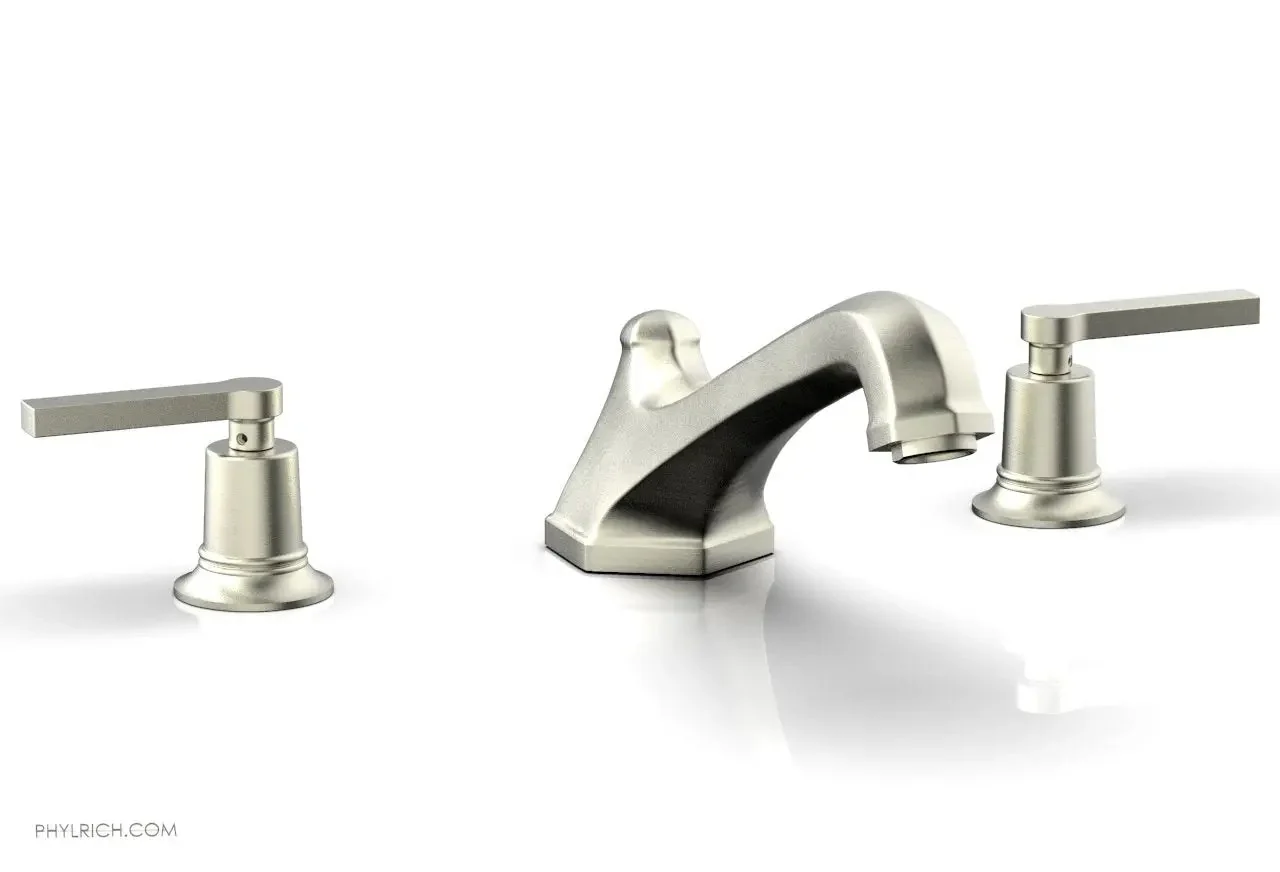

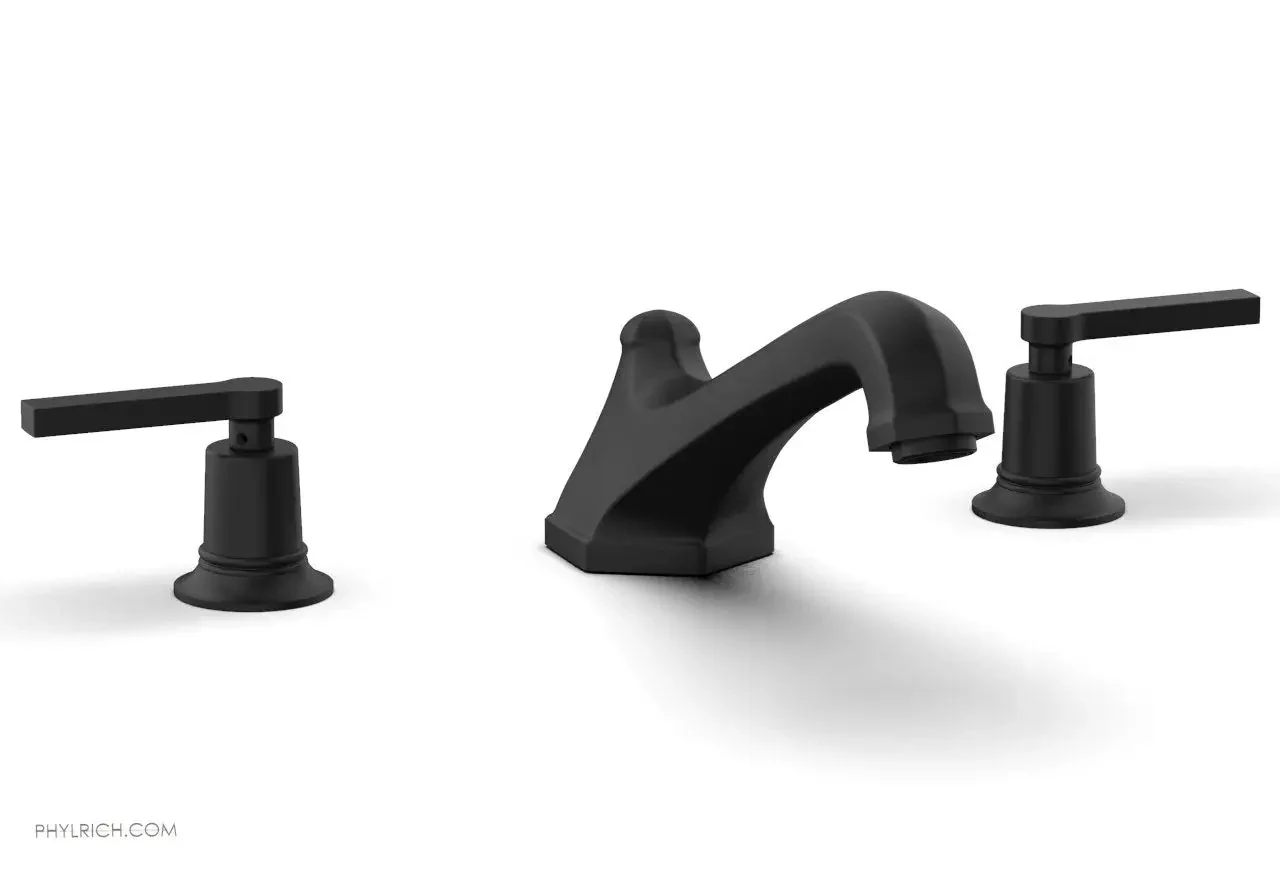

About The Phylrich HEX MODERN Deck Tub Set - Lever Handles

Discover the perfect blend of charm and elegance with the Phylrich HEX MODERN Deck Tub Set - Lever Handles. This set beautifully captures the essence of Old English design while incorporating modern functionality, ensuring that your bathroom not only looks sophisticated but also operates with ease. With its precision engineering and high-quality materials, this product stands out as a top choice for those looking to elevate their bathing experience.

Features:

• Made in the U.S.A.
• Style: Traditional
• Collection: Hex Modern
• Temperature Controlled By: Handles
• Lever Handles

Technical Details:

• ADA Compliance: Yes
• Deck Thickness Maximum: 2"
• Deck Thickness Minimum: 1/8"
• Fitting Hole Diameter: 1 1/8"
• Number of Holes: Three Hole
• Number of Handles: Two
• Handle Spread Maximum: 12"
• Handle Spread Minimum: 8"
• Handle Turn Angle: Quarter Turn
• Spout Reach: 9 1/2"
• Spout Height: 5 3/8"
• Inlet Connection Type: Male 3/4" NPT
• Installation Type: Deck Mounted
• Primary Material: Brass
• Valve Material: Ceramic
• Flow Restriction: Full Flow
• Water Pressure Maximum: 85 PSI
• Water Pressure Minimum: 20 PSI
• Water Pressure Recommended: 60 PSI

Codes & Standards:

• ASME A112.181/ CSA B1251
• ASME 112.18.2/ CSA B125.2
• ANSI NSF
• CEC
• Colors may vary, for authentic colors see finish swatch image or order a sample
