Focal Point Hardware is an authorized Phylrich retailer!

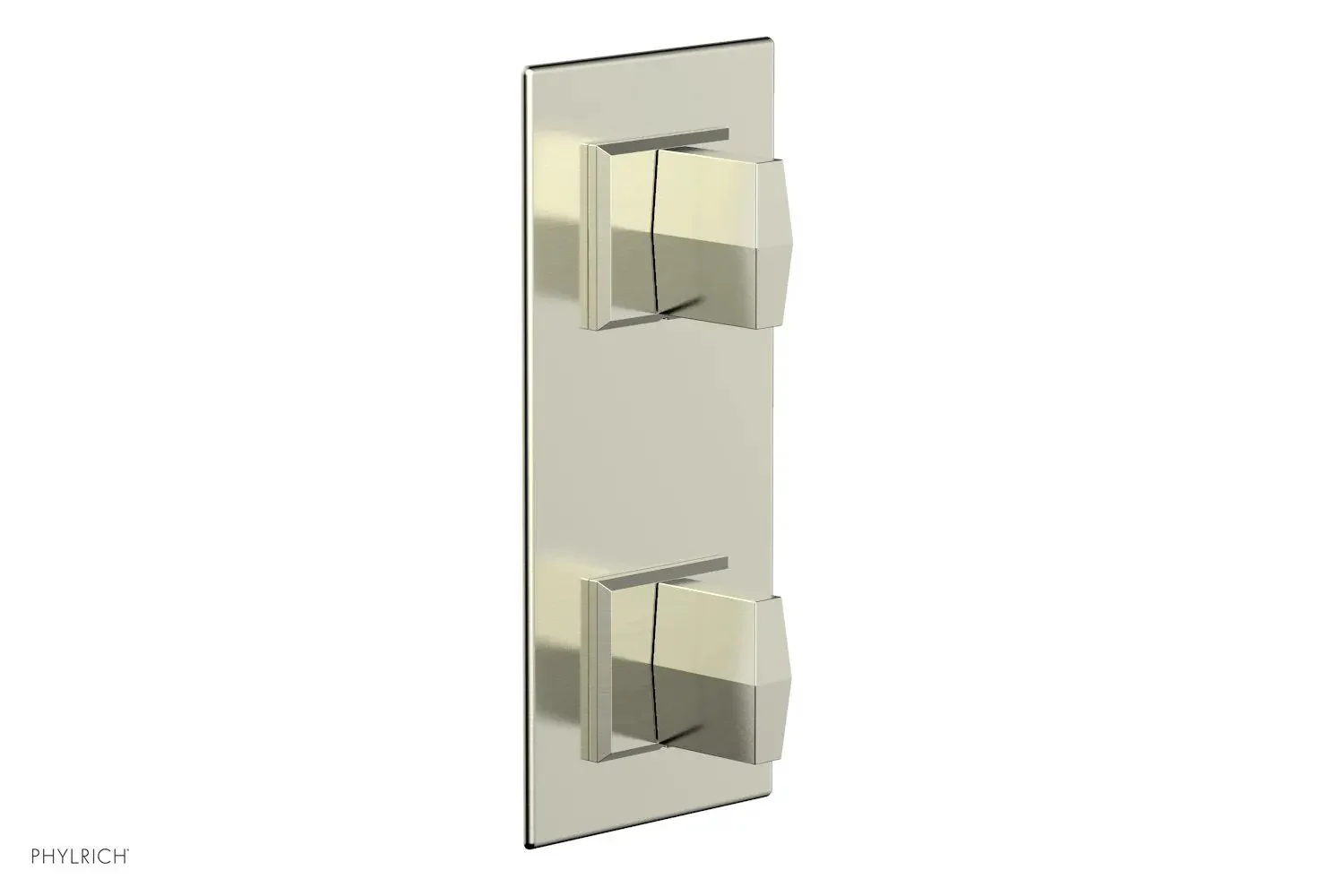

Introducing the Phylrich 4-567 DIAMA 1/2" Thermostatic Valve with Volume Control or Diverter, Blade Handles – a perfect blend of style and functionality that will elevate your bathroom experience. With sharp lines and clean angles, this valve creates a striking visual effect, seamlessly adding a touch of glamour to any sink. The sleek blade handles not only enhance aesthetics but also offer precise temperature control for your comfort.

Features & Functionality:

• Style: Contemporary
• Collection: Diama
• Temperature Control: Thermostatic
• Handle Type: Blade Handles

Technical Details:

• ADA Compliance: Yes
• Access Hole: 3 x 8"
• Number of Handles: Two
• Handle Spread: 5"
• Top Handle Turn Angle: Quarter Turn
• Bottom Handle Turn Angle: 115-118°
• Installation Type: Wall Mounted
• Primary Material: Brass
• Valve Material: Ceramic
• Flow Rate: 6.5 GPM
• Flow Restriction: 1.8 GPM per function
• Water Pressure Maximum: 85 PSI
• Water Pressure Minimum: 20 PSI
• Water Pressure Recommended: 60 PSI

Codes & Standards:

• ASME A112.181/ CSA B1251
• ASME 112.18.2/ CSA B125.2
• ANSI NSF
• CEC
• Watersense 61 Sect. 9
• State of MA
• Colors may vary, for authentic colors see finish swatch image or order a sample

Experience the perfect combination of style and functionality with the Phylrich DIAMA Thermostatic Valve. Its elegant design is not just about looks; it's engineered with precision to deliver outstanding performance and compliance with relevant safety standards. Transform your bathroom into a luxurious retreat with this exceptional piece from Phylrich, known for their commitment to quality and innovation.
