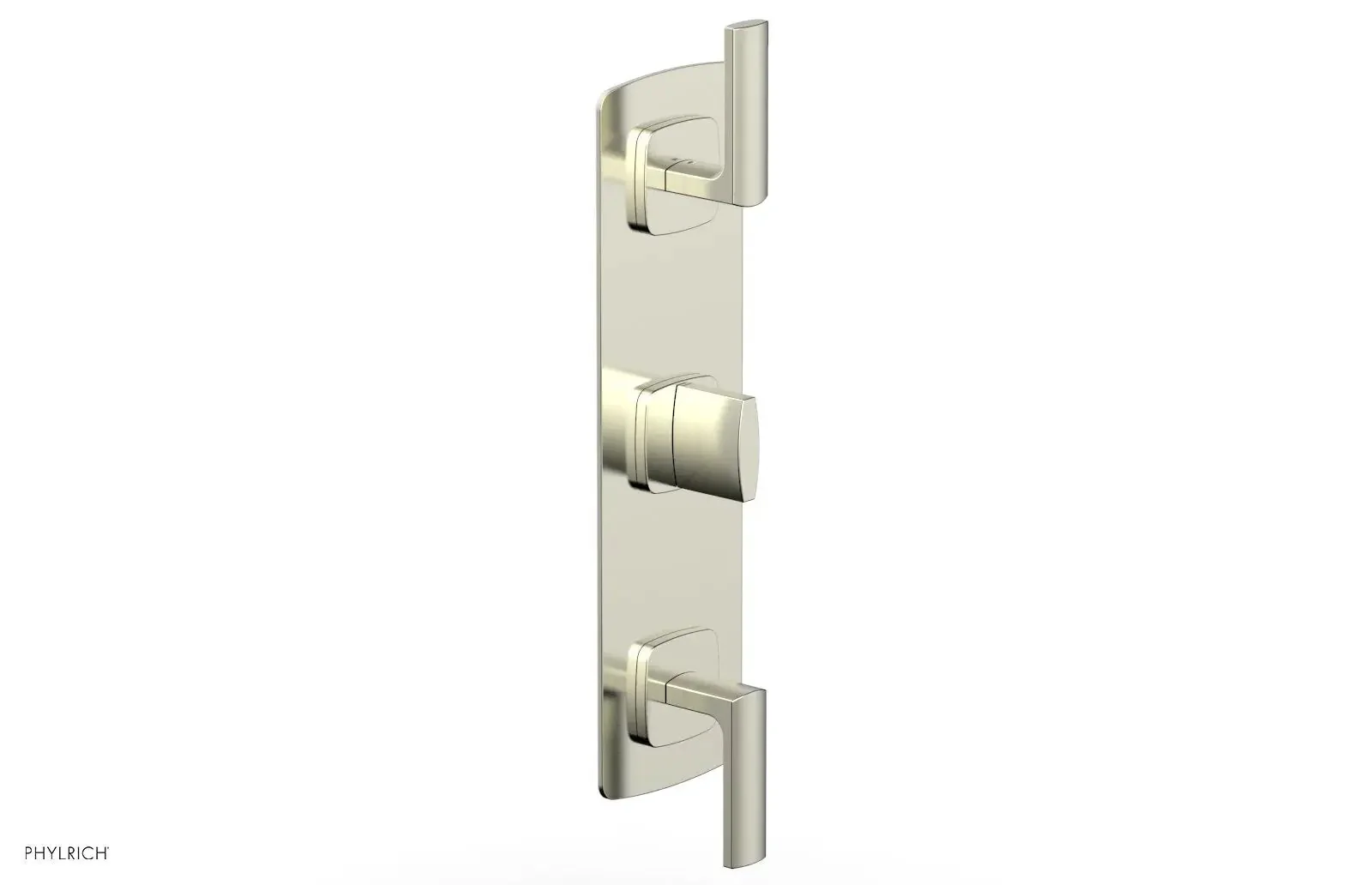

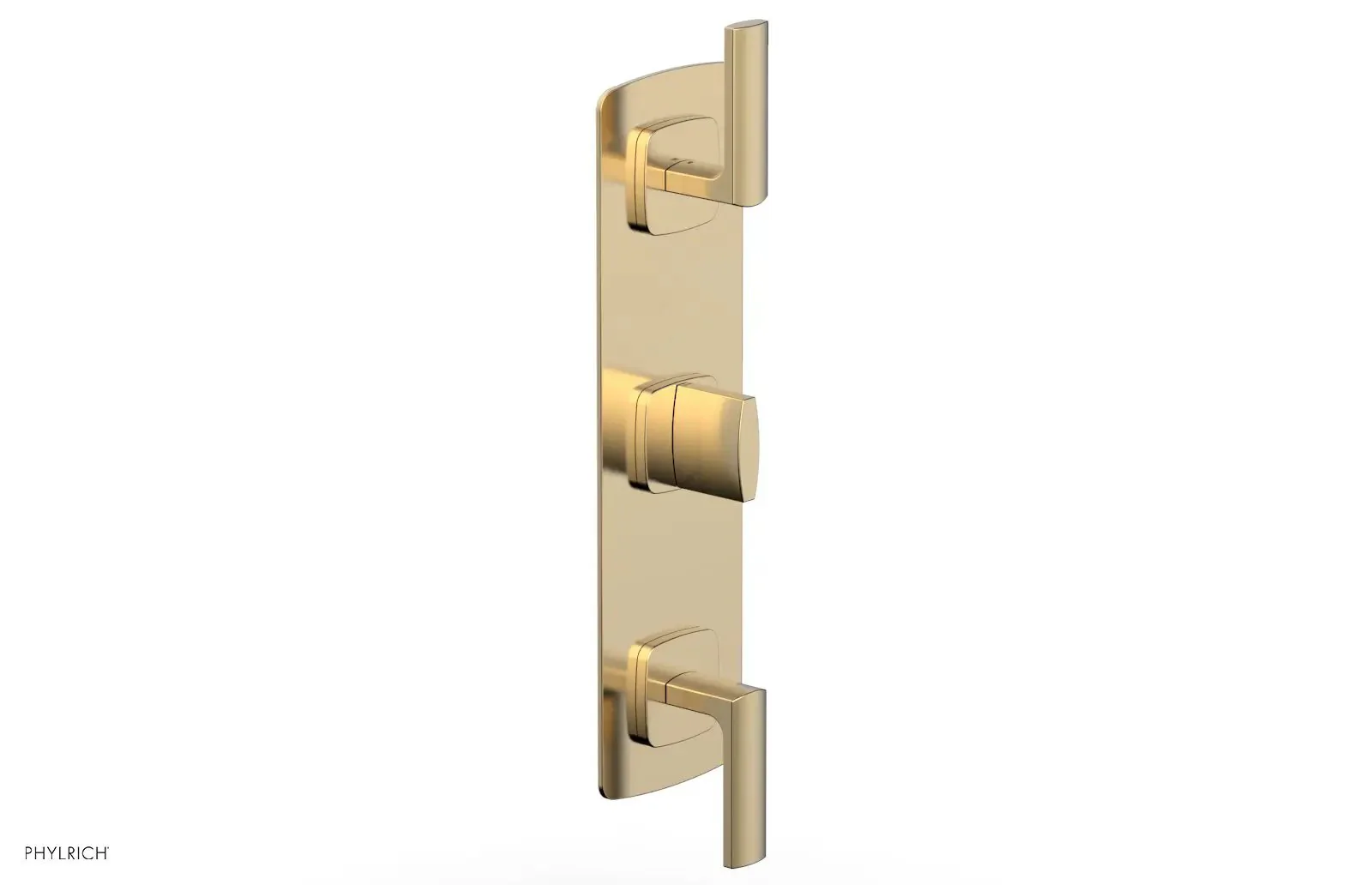

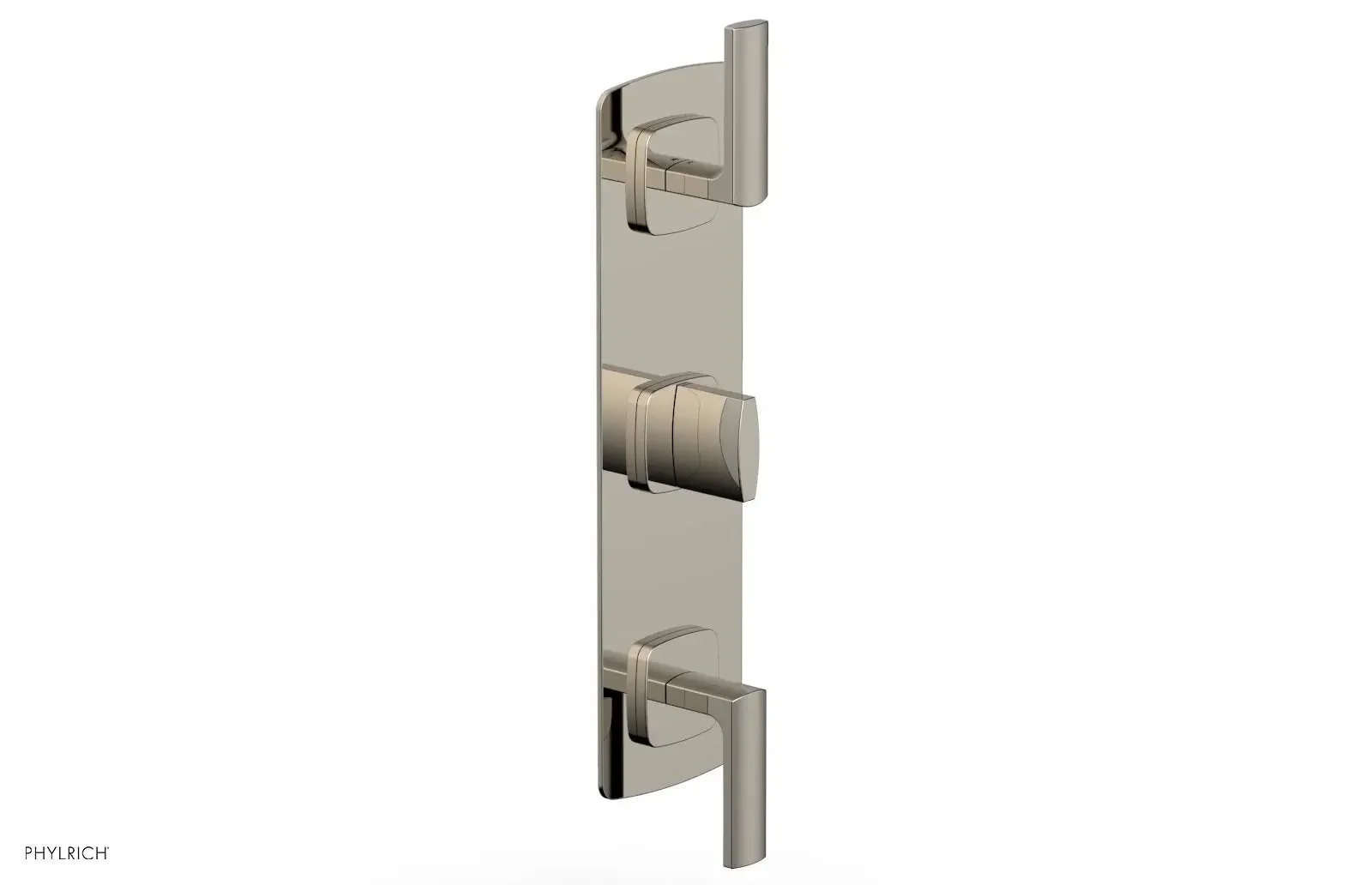

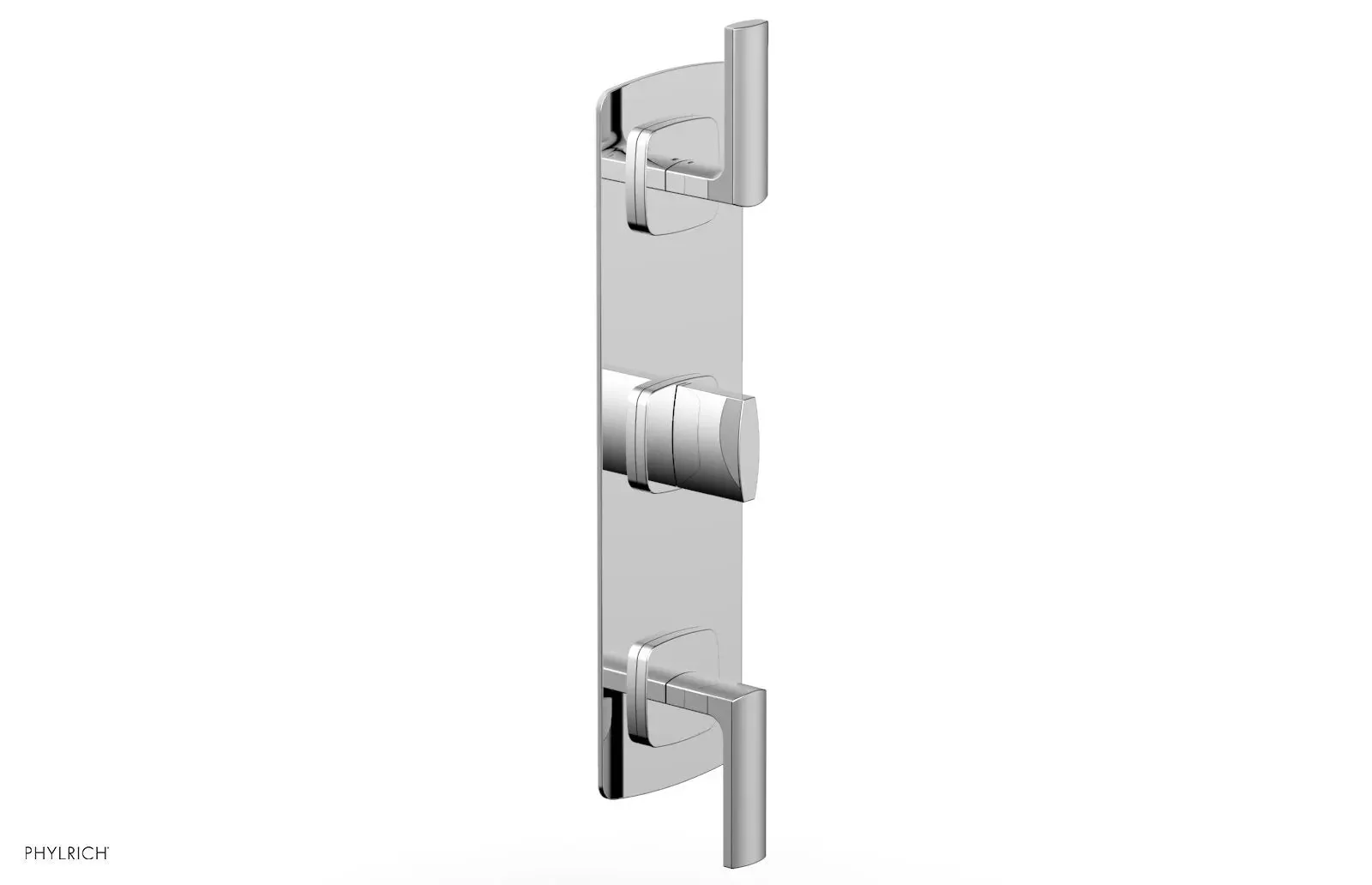

Introducing the Phylrich RADI 1/2" Thermostatic Valve with Two Volume Control, Lever Handles – a perfect fusion of elegance and functionality for your modern bathroom or kitchen. The RADI collection stands out with its contemporary design, featuring sleek lines and bold angles that make a striking statement. This thermostatic valve not only enhances the aesthetic appeal of your space but also offers precise temperature control and water flow management, ensuring a luxurious and comfortable experience every time.

Features

• Style: Contemporary
• Collection: RADI
• Temperature Controlled: By Thermostatic
• Lever Handles: Yes

Technical Details

• ADA Compliance: Yes
• Access Hole: 3 x 13"
• Number of Handles: Three
• Handle Spread: 5"
• Top Handle Turn Angle: Quarter Turn
• Bottom Handle Turn Angle: 115-118°
• Installation Type: Wall Mounted
• Primary Material: Brass
• Valve Material: Ceramic
• Flow Rate: 6.5 GPM
• Flow Restriction: 1.8 GPM per function
• Water Pressure Maximum: 85 PSI
• Water Pressure Minimum: 20 PSI
• Water Pressure Recommended: 60 PSI

Codes & Standards

• ASME A112.181/ CSA B1251
• ASME 112.18.2/ CSA B125.2
• ANSI NSF
• CEC
• Watersense 61 Sect. 9
• State of MA
• Colors may vary, for authentic colors see finish swatch image or order a sample
