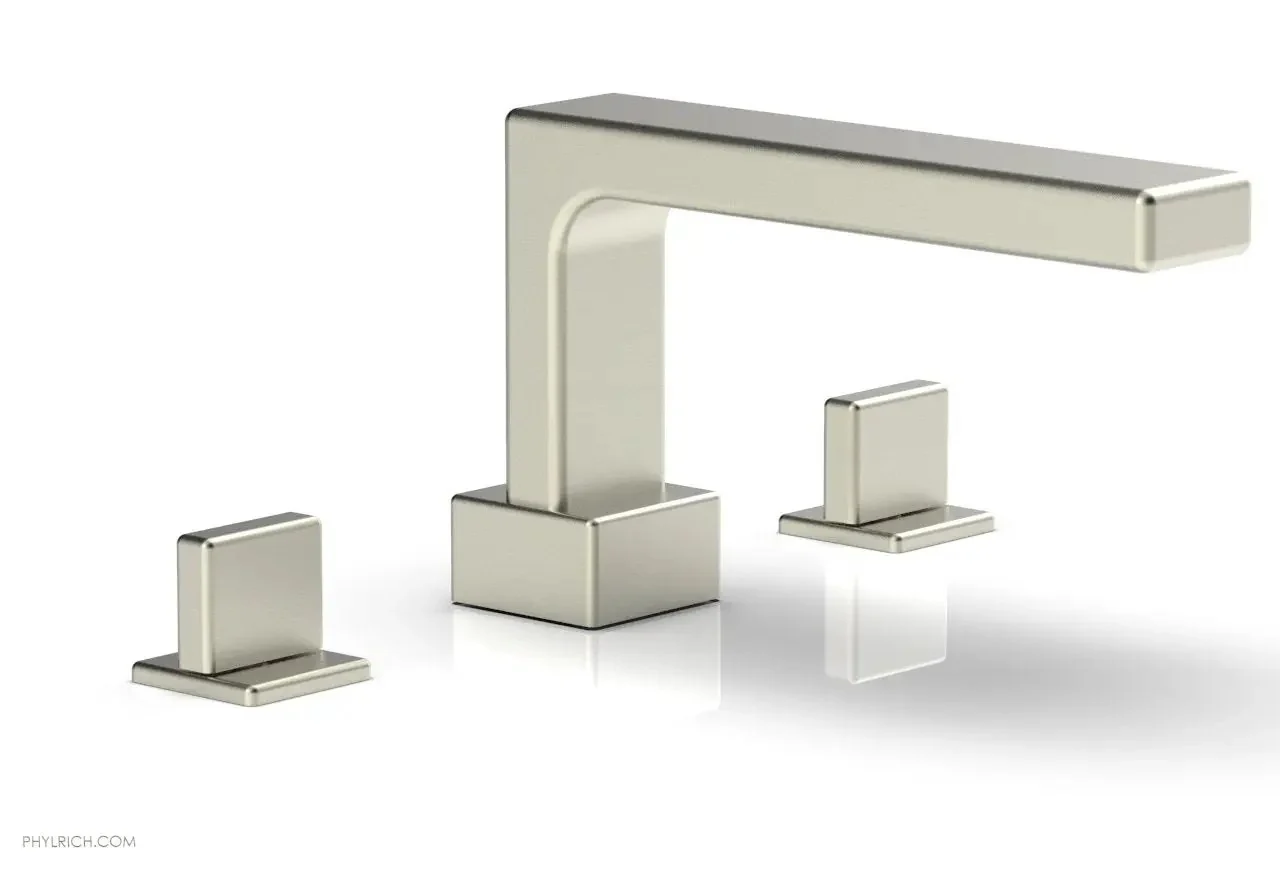

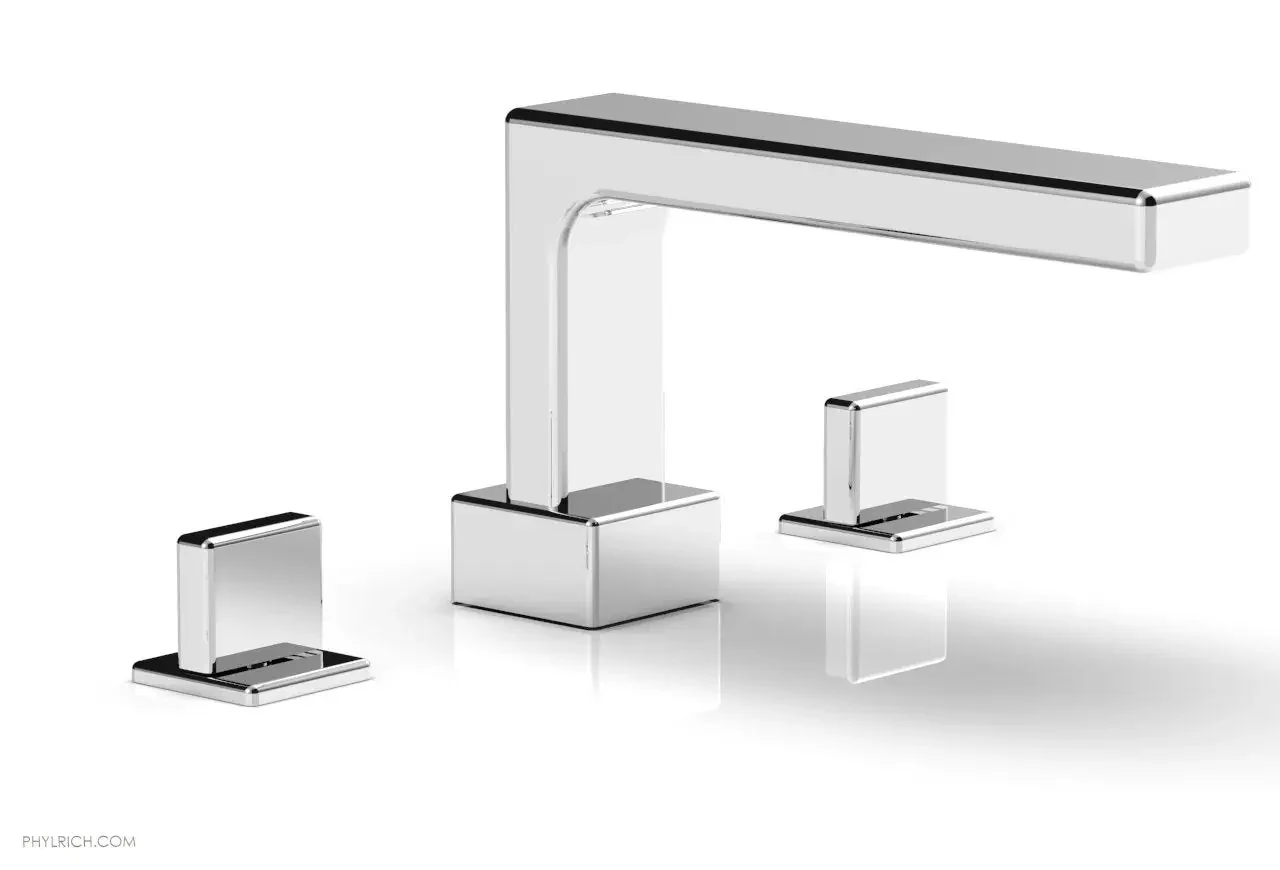

Phylrich MIX Deck Tub Set - Blade Handles
Focal Point Hardware is an authorized Phylrich retailer!
About The Phylrich MIX Deck Tub Set - Blade Handles
Discover the elegance and functionality of the Phylrich MIX Deck Tub Set - Blade Handles, a stylish collection designed for those who appreciate a modern aesthetic. This set combines minimalistic design with exceptional performance, making it a perfect addition to any contemporary bathroom. The blade handles provide precise temperature control, ensuring a luxurious bathing experience.
Features
- Style: Contemporary
- Collection: Mix
- Temperature Controlled By: Handles
Technical Details
- ADA Compliance: Yes
- Deck Thickness Maximum: 2"
- Deck Thickness Minimum: 1/8"
- Fitting Hole Diameter: 1 1/8"
- Number of Holes: Three Hole
- Number of Handles: Two
- Handle Spread Maximum: 12"
- Handle Spread Minimum: 8"
- Handle Turn Angle: Quarter Turn
- Spout Reach: 9"
- Spout Height: 6 3/8"
- Inlet Connection Type: Male 3/4" NPT
- Installation Type: Deck Mounted
- Primary Material: Brass
- Valve Material: Ceramic
- Flow Restriction: Full Flow
- Water Pressure Maximum: 85 PSI
- Water Pressure Minimum: 20 PSI
- Water Pressure Recommended: 60 PSI
- Colors may vary, for authentic colors see finish swatch image or order a sample
Codes & Standards
ASME A112.181/ CSA B1251, ASME 112.18.2/ CSA B125.2, ANSI NSF, CEC
